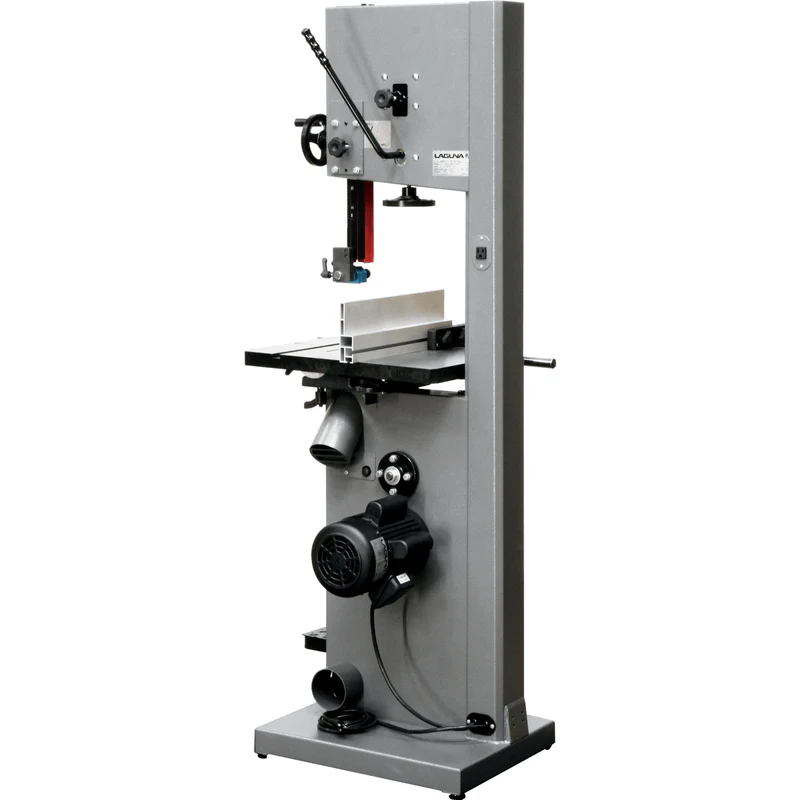

# Laguna 14BX Bandsaw

<div align="left"><figure><img src="https://2252020283-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-LmtjMpkq7lmFcCnBcpE%2Fuploads%2FN6liCn0lyLEJd5T1l8qN%2Flaguna-tools-classic-machinery-14-bx-bandsaw-36581726322911_800x.webp?alt=media&#x26;token=ec84bb34-3a6a-4961-8150-a62e543a6339" alt="" width="375"><figcaption></figcaption></figure></div>

## Specifications

* Resaw Capacity: 13''
* Overall Height: 70-1/4''
* Table Dimensions: 21-1/2'' x 16''
* Table Height from Floor: 38''
* Table Tilt Right: 45°
* Table Tilt Left: 7°
* Dust Ports: (2) 4''
* Blade Length: 115''
* Max. Blade Width: 3/4''
* Min. Blade Width: 1/8''
* Wheel Material: Cast iron
* Footprint: 17-1/2'' x 22-1/2''
* Voltage: 110V
* Motor: 1.75HP, 14A, TEFC
* Light Outlet Voltage: 110V
* 6' Cord w/ Nema Plug: 5-15P
